Enlighten DMX software

Software Features

AI Programming Assistant

Set some basic parameters and have Enlighten build your complete light show in seconds. Click Image to view video that describes the process

Quick Custom Fixture Builder

No need to stress if you need to patch a custom Fixture, we have the easiest fixture builder in the industry

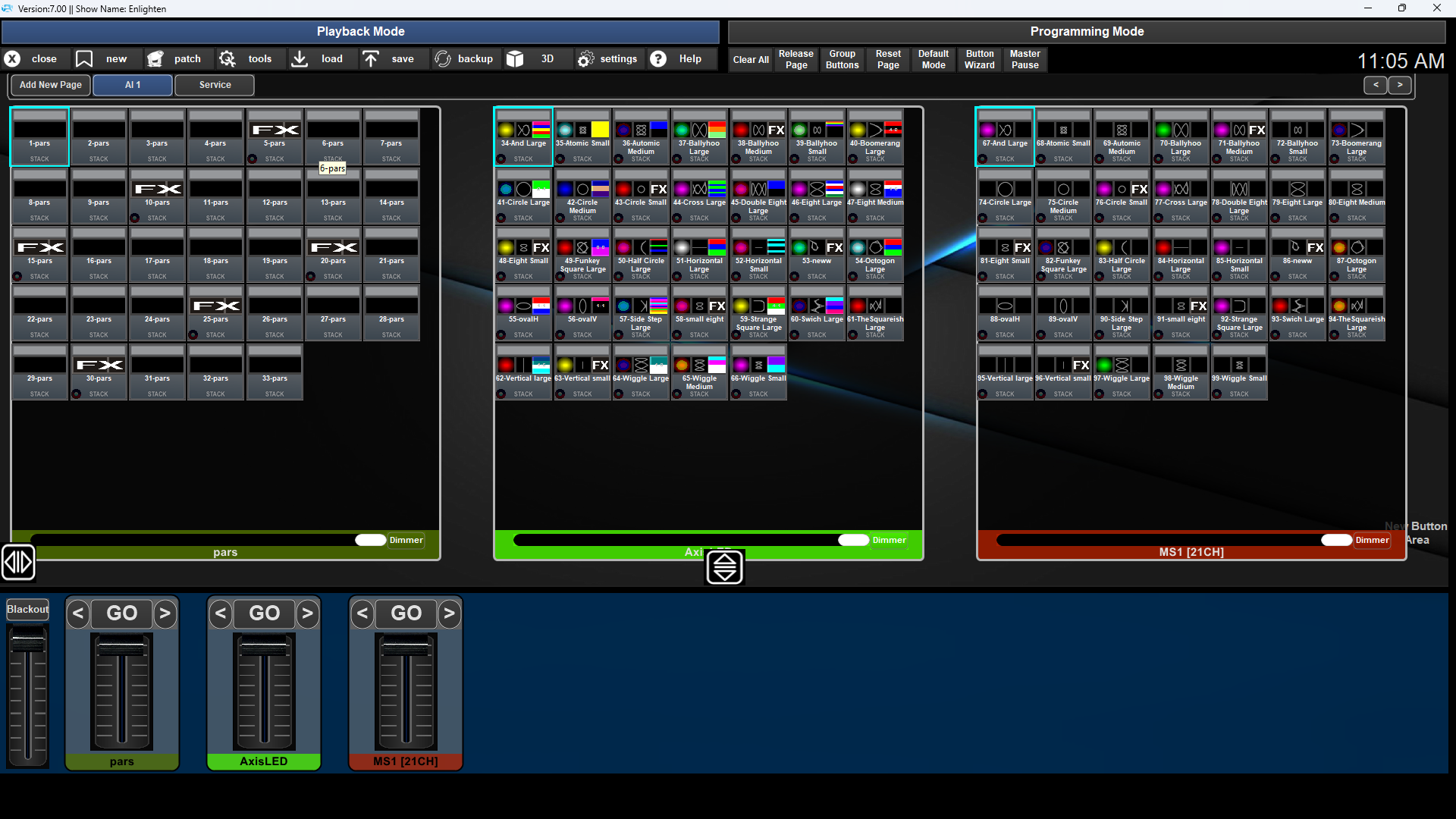

Button Groups

Button groups are collections of buttons in the Enlighten DMX software interface, each representing a specific function, scene, or effect. Up to 8 groups can be created per page.

Button groups help organize different lighting controls into manageable sections. This makes it easier for users to find and activate specific functions quickly. It also allows for a ‘GO’ button to allow triggering of next scene , in addition to allowing control of DImming, Speed, and Size of button active in a group.

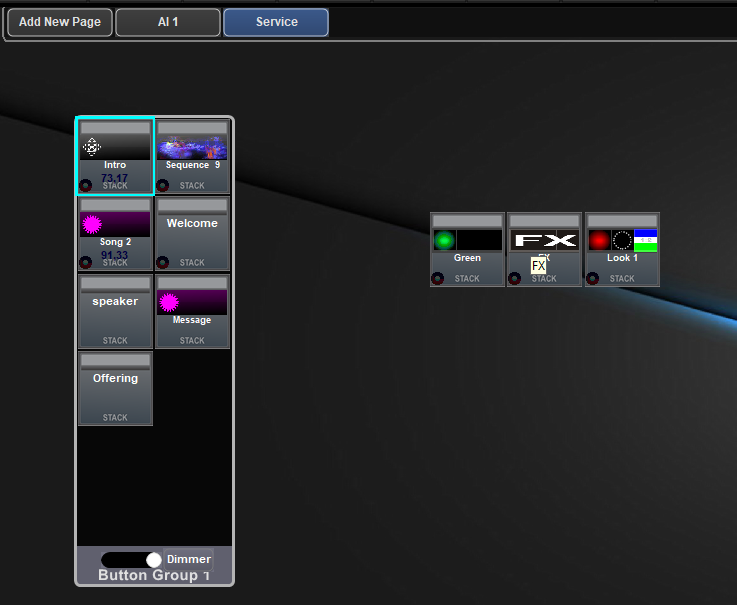

Sequence Preview

Each Sequence Button can display, Color, Gobo, RGBfx and shape programed, giving the user a quick visual of what is contained in that look.

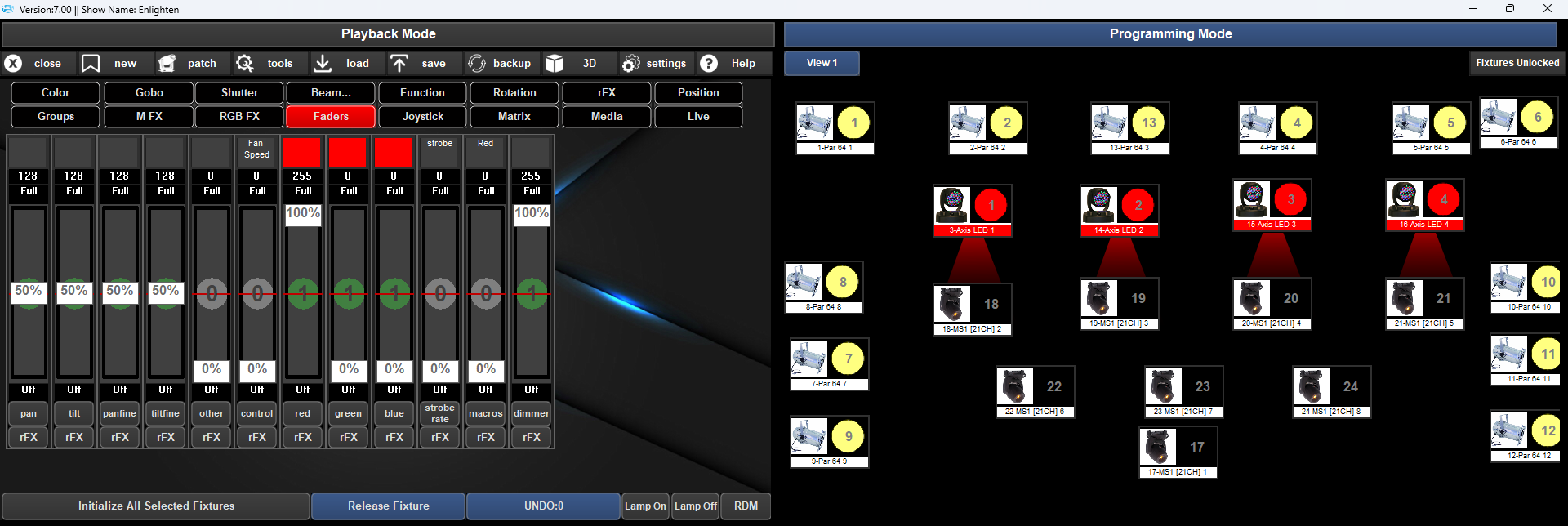

Direct Virtual Fader Programming

Get as much granular control of dmx channels with out direct virtual fader screen

Modern FX Engine

Create Stunning and complex chases using our simple but powerful FX engine

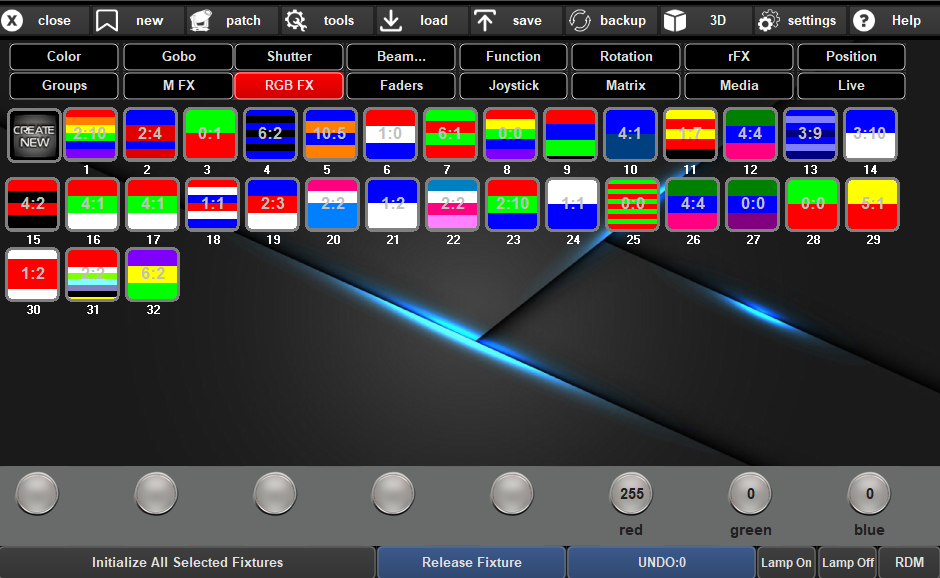

RGB fx

Us the existing color schemes or create your own, create complex and stunning color chase combinations in Minutes

Touch Screen Friendly Design

Pair Enlighten with a touch screen and get uncompromised modern control of your light show

MIDI Input

Trigger Looks or faders with most MIDI controllers or use MIDI to interact with ProPresenter or other external software

WEB Remote

Allow any mobile or desktop device to trigger  looks for our web based remote. This allows users to trigger looks from anywhere with a mobile or desktop device connected to the same network

28 Universes Unlocked

With our Enlighten USB to DMX Interface you unlock up to 28 universes on DMX output via 3 or pin xlr, ArtNet, sACN, and Secure sACN.

LED Matrix Control

set any set of fixtures into matrix mode to transpose images, gifs, video, audio, and more the the LED matrix Layout

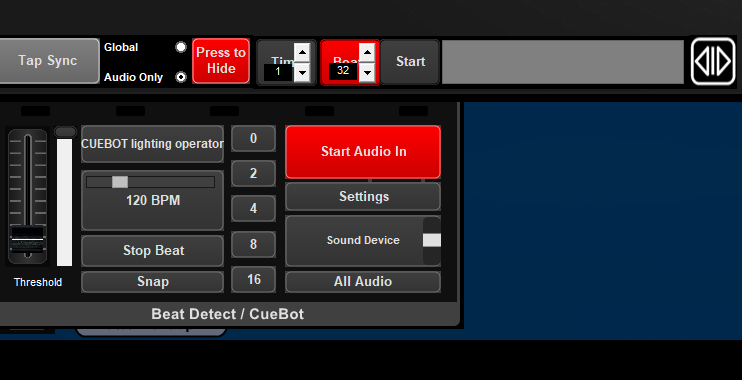

Beat Detect

Use our accurate beat detect to set chase speeds of step occurance based on music beat.

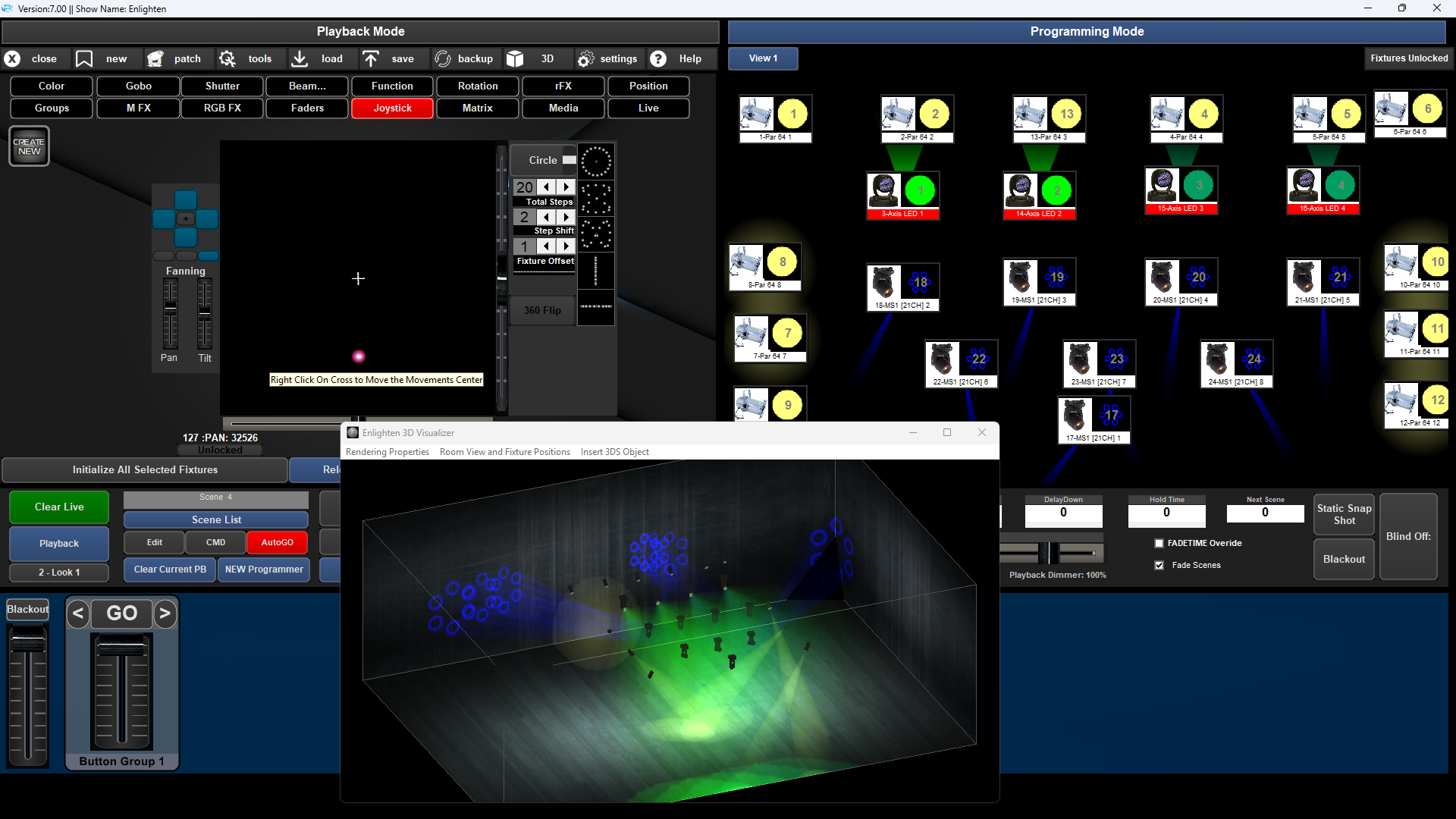

Fixture View and 3D

Lay out fixture as they are on stage for quick and easy fixture selection. Multiple views are also available to separate house lighting and other fixtures in views. Use our 3d viewer to pre program with the ability to view colors, gobos and beam positions

Palette Programing

Program using palettes similar to workflow in professional grade lighting consoles. Accurate and quick position presets and moving head movement shape control of both size, center and start position.

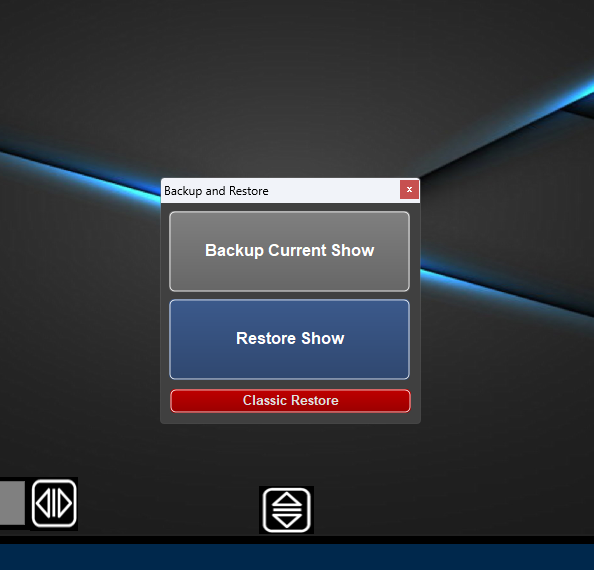

Backup and Restore

Program shows offline and use the backup and restore to move shows to other Enlighten installs or the Mega Console

Fixture Cloning

Need to add more fixtures to a show, simply use out clone copy and paste and all show data will be cloned to the new fixture

Timeline Show Playback

Record a show synced to internal audio or video and playback timed shows with the press of a button

HD Video Crossfade with Lighting

Cross fade video and Lighting simultaneously with out +media feature. More information in video here.

Video Help

Software Overview

Patching

Programming Mode

Create Static Look

Create Lighting Chase

Moving Looks

Joystick

AI button Creator

FAQ ( frequently asked questions)

Minimum Requirements for 1 Universe Output:

  • Windows PC running Windows 11, 10, or Windows 7 (32 or 64 bit OS)
  • 2GHZ intel CPU Celeron or above
  • Video resolution of at least 1024 x 768
  • USB port for USB to DMX Interface connection
  • 4Gig of Ram and 100MB of Hard drive Space

Optimum Requirements with Multiple Universe Output and 3D/Video Out:

  • Windows PC running Windows 11, 10, or Windows 7 (32 or 64 bit OS)
  • 3GHZ intel CPU Celeron or above
  • Video resolution of at least 1920 x 1080
  • USB port for USB to DMX Interface connection
  • 8Gig of Ram and 100MB of Hard drive Space
  • Video Card with OpenGL and DirectX Support
  • Touch Screen (19″ or larger recommended)

Enlighten is designed to only work with our Enlighten DMX to USB interface. The demo version is fully functional but will not output DMX unless the Enlighten DMX to USB interface is connected to the computers USB port.

Enlighten is designed to control any manufacturers fixtures as long as they are compliant to the DMX-512 Standard. The Enlighten DMX to USB interface has both a 5 pin DMX connector and 3 pin Dmx connector.

Check to make sure you are using the correct Fixture mode and all fixtures are addressed properly. If the mode is correct check the fixture profile, using the Fixture editor. Please report any problems with profiles to us.

Our Enlighten USB to DMX interface Unlocks 28 universes of DMX output. This output can be accessed using any Artnet or sACN node. (purchased separately)  The usb to dmx interface has hardware output of 1 universe EITHER 3pin or 5pin XLR

Enlighten has a simple 3D Visualizer included. The Visualizer  will allow you to pre-program shows, and visualize light beams, gobos, and colors in a 3D room

Your USB interface firmware needs to be updated, We can send you instructions or you can send the unit it in and we will upgrade firmware at no additional charge (shipping not included)

Enlighten can cross fade and play HD video on second PC screen. PC with proper CPU and graphics card is required.
